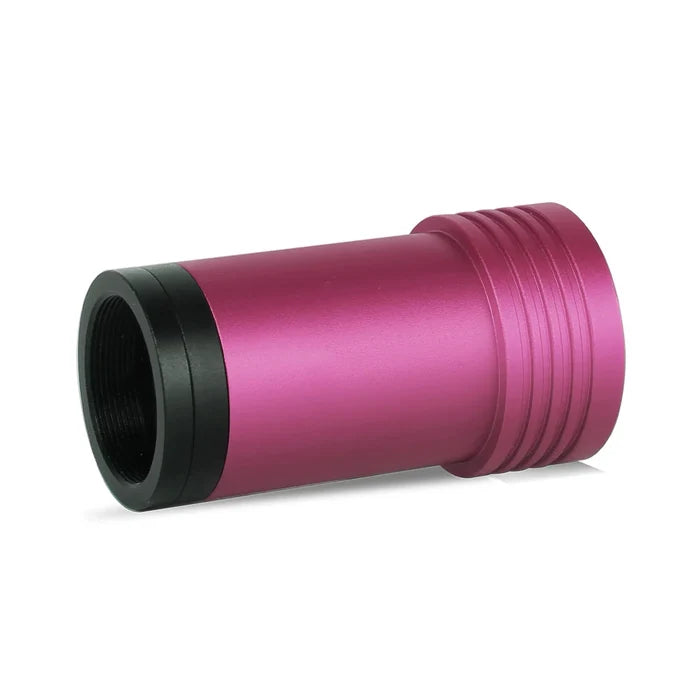

Touptek GPM 662M Mono Guiding Camera
Touptek GPM 662M Mono Guiding Camera
Professional monochrome autoguiding camera featuring Sony IMX662 STARVIS 2 sensor with exceptional sensitivity for precise telescope tracking and advanced astronomical imaging
Easy Lens Configuration
Transform your GPM662M from a Guide Camera to a wide-field galaxy imager in minutes. Our step-by-step guide ensures quick and secure lens replacement for different imaging applications.
The modular CS-mount design allows seamless transitions between telescope imaging and wide-field photography, maximizing the versatility of your investment.
Extended Infrared Sensitivity
The monochrome GPM662M extends its spectral response to 1100nm, providing exceptional performance in near-infrared wavelengths. This extended range reveals atmospheric details on planets that are invisible in visible light, making it invaluable for advanced planetary imaging with methane and IR-pass filters.
Optimized Dual-Mode Operation
Switch between HCG and LCG modes to perfectly match your imaging requirements, from capturing faint details to managing bright targets.
Professional Features
Built-in Frame Buffer
Ensures stable data transmission and effectively reduces amp-glow, maintaining maximum frame rates even with multiple cameras operating simultaneously.
ST4 Auto-Guiding Port
Built-in ST4 port transforms the GPM662M into a dual-purpose imaging and precision autoguiding camera for complete imaging control.
Hardware ROI & Binning
Hardware-based ROI increases frame rates for guide star tracking. Digital binning from 1×1 to 8×8 in both stacking and averaging modes.
12-bit ADC
High bit-depth analog-to-digital conversion preserves subtle tonal gradations and provides 4096 levels of brightness data.
Multiple attachment compatibility
CS-Mount Design
Standard CS-mount with removable adapter ring for maximum telescope and lens compatibility.
1.25" Filter Ready
Direct compatibility with 1.25" filters when using the included extender.
Multiple Adapters
Includes 1.25" nosepiece and 5mm adapter ring for various configurations.
Compact Professional Design
Universal Software Compatibility
The GPM662M seamlessly integrates with all major astronomy imaging software platforms, providing maximum flexibility for your imaging workflow.
- PHD2 Guiding
- SharpCap Pro
- FireCapture
- ASCOM Platform
- MaxIm DL
- Nebulosity
- MetaGuide
- AstroArt
Technical Specifications
| Specification | Details |
|---|---|
| Sensor | Sony IMX662 Monochrome |
| Resolution | 1920 × 1080 (2.1 MP) |
| Pixel Size | 2.9 µm × 2.9 µm |
| Sensor Size | 1/2.8" (6.45 mm diagonal) |
| Frame Rate | 17.8 FPS @ 8-bit / 8.9 FPS @ 12-bit |
| Exposure Range | 0.1 ms – 1000 s |
| Full Well Capacity | 33.8 ke⁻ |
| G Sensitivity | 8970 mV @ 1/30 s |
| SNR Max | 45.3 dB |
| Spectral Range | 380 – 1100 nm (with AR window) |
In the Box
- Camera body
- 1.25'' Extender
- 5mm Extender
- USB2.0 Type-C
- 2.0m ST4 auto Guiding Cable
Warranty & Manual
ToupTek 2 year Warranty
